This function imports structures from an Excel file that has been saved as *.TXT (tabstop separated).

The following rules must be observed when defining the file:

·         Only one folder must be defined per line

·         A folder definition comprises 3 elements

o   Chapter

o   Title

o   Description

·         In order to create the folder on the same level as the folder of the previous line, the definition must be exactly below the previous line

·         In order to create a sub-folder, exactly 3 fields must be indented to the right

·         Comments are optional, chapters and titles are mandatory











Fig.65: Excel structure example

Column assignment:

Column A:       Level 1     Chapter number

Column B:       Level 1     Chapter name

Column C:       EMPTY

Column D:       Level 2     Chapter number

Column E:       Level 2     Chapter name

Column F:       EMPTY



Saving the structure

The structure defined in Excel must be saved as a txt file (tab-separated).

Fig. 66: Standard Windows dialog – Select file

Importing the structure into eDoc

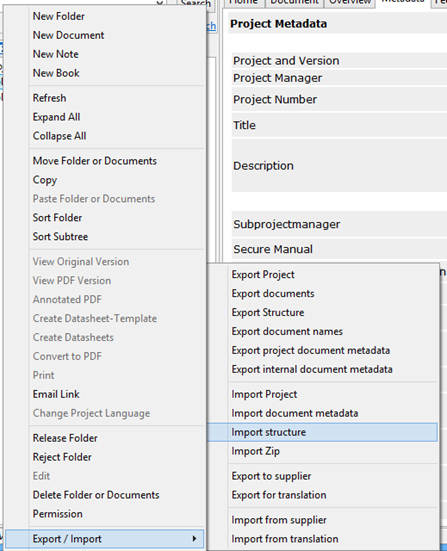

Fig. 67: Import structure

Adapting the structure (Export / Import)

Note

Four columns are generated when a structure is exported from eDoc. The fourth column contains an Identification number that must not be deleted.



A structure can be simply adapted in that it is exported, processed and imported again.

Editing is carried out in the same way as 2.2.31.11 Import structure.

Lines can be inserted or deleted.

For inserting, four cells per line are required. The fourth column (Identification number) remains empty when lines are inserted.
